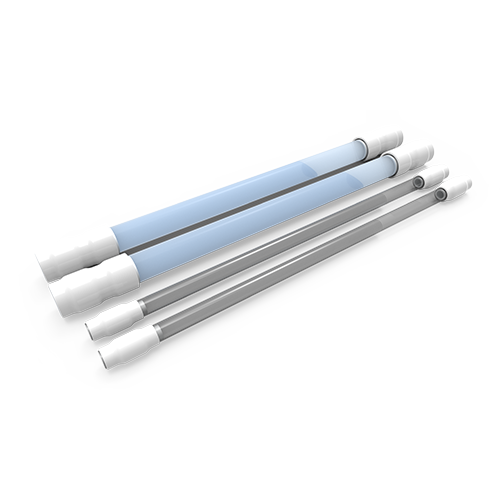

Dynacal Permeation Tube

Dynacal perm tubes and wafer permeation devices are small, inert capsules containing a pure chemical compound in a two phase equilibrium between its gas phase and its liquid or solid phase. At a constant temperature, the device emits the compound through its permeable portion at a constant rate. Perm tubes and wafer devices are typically inserted into a carrier flow to generate test atmospheres for calibrating gas analyzer systems, testing hazardous gas alarms, or conducting long-term studies of effects on materials or biological systems – in short, any situation requiring a stable concentration of a specific trace chemical

Download Brochure

Benzene 1.0 cm HE perm tube cas# 71-43-2

PDPT-1400
C6H6
Max. Total Length: 7.0 cm
Max. Diameter: 1.1 cm
30°c 50 ng/min
35°c 65 ng/min
40°c 112 ng/min
45°c 150 ng/min
50°c 400 ng/min
60°c 700 ng/min
70°c 1,000 ng/min
80°c 2,100 ng/min
90°c 3,785 ng/min
100°c 5,520 ng/min

Mercury 1.0 cm HESR perm tube cas# 7439-97-6

PDPT-0030
Hg
Max.Total Length: 7.0 cm
Max.Diameter: 1.1 cm
30°c 15 ng/min
35°c 40 ng/min
40°c 50 ng/min
45°c 65 ng/min
50°c 70 ng/min
60°c 150 ng/min
70°c 250 ng/min
80°c 400 ng/min
90°c 800 ng/min
100°c 1500 ng/min
