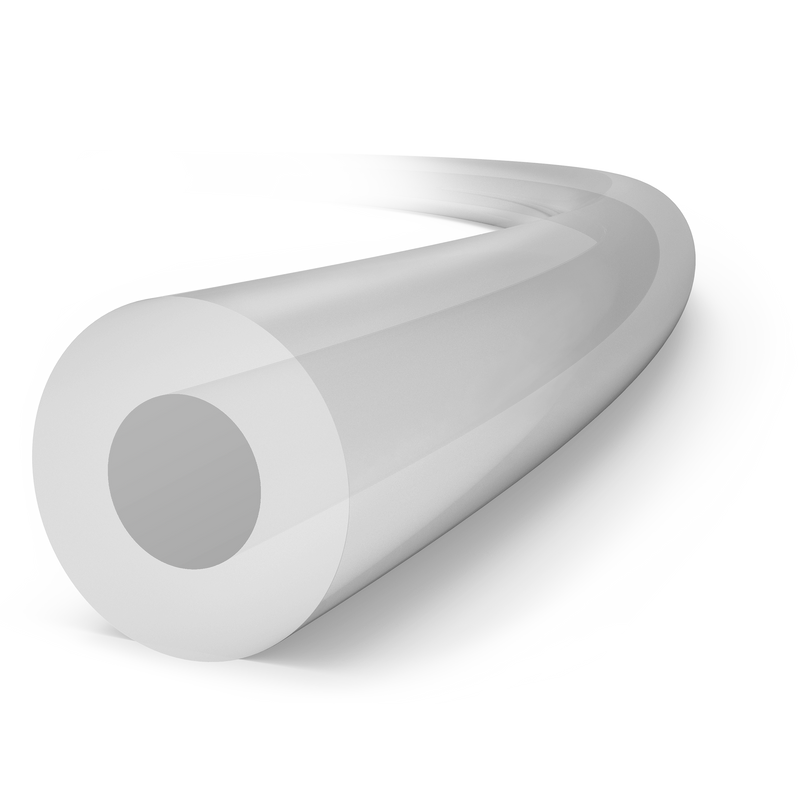

ETFE TUBING 1/8" OD
Overview
ETFE stands for ethylene tetrafluoroethylene and offers the highest mechanical and tensile strength of the fluoropolymer tubing family at VICI Metronics. ETFE offers high energy radiation resistance and is UV-transparent. Unlike other fluoropolymer tubing, ETFE is semi-opaque. This tubing is ideal for high-pressure applications.
ETFE has very high mechanical and tensile strength, which makes this tubing ideal for high pressure applications. As such, this tubing is often used for medical purposes, nuclear fields, and aircraft applications.
Applications that our fluoropolymer tubing include:
- Medical sample transport
- Food-grade applications
- Liquid transport
Click here to see our ROHS, FDA, and [insert other certifications] certifications.
Concerned about your application that is not listed above? Contact us today to determine if ETFE fluoropolymer tubing is right for you.
VICI Metronics ETFE fluoropolymer tubing is compatible with all Valco fittings, high and low-pressure Valco fittings, and all tube compression fittings. The standard tubing will be compatible with all standard fittings, and as such, can often be used as an alternative to steel tubing where applicable.
VICI Metronics also offers custom flanging compatible with Valco flange fittings.
Unsure about what is needed for your application? Contact our tubing specialists today! [Insert contact button that links to your contact form or other mode of easy communication for your customers]
Maximum Operating Temperature
Use ETFE fluoropolymer tubing at continuous operating temperatures up to 200°C (392°F).
Maximum Operating Pressure by Tubing ID
|
Tubing ID [inch (mm)] |
Max. Operating Pressure [psi (bar)] |
Product Number |
|
0.010 (0.254) |
2,800 (193) |
MT-E-62010 |
|
0.020 (0.508) |
2,200 (151.7) |
MT-E-62020 |
|
0.030 (0.762) |
1,700 (117) |
MT-E-62030 |
|
0.040 (1.016) |
1,200 (82.7) |
MT-E-62040 |
Order Specifications
The 1/16” and 1/8“ OD ETFE fluoropolymer tubing is available in standard sizes or in OEM quantities with any ID specified from 0.002” (0.0508 mm) to 0.030” (0.75 mm).
